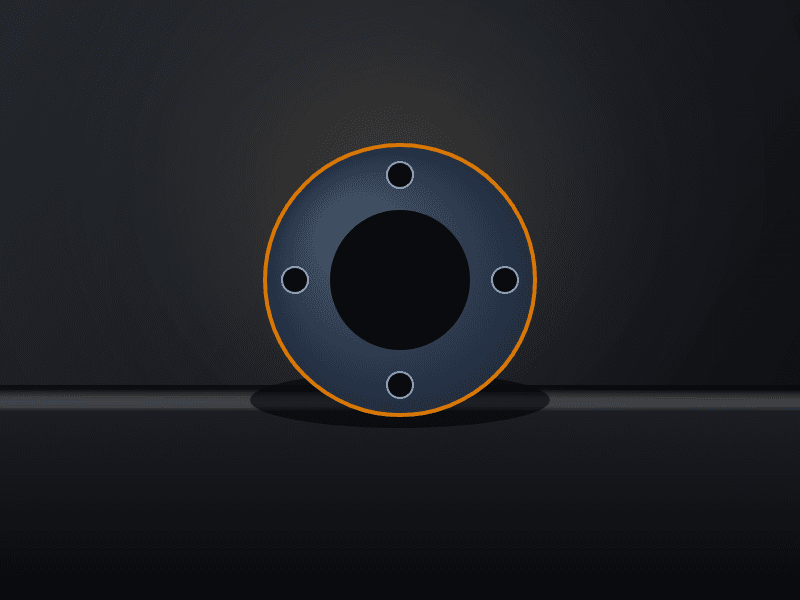

Non-Asbestos Compressed Fibre Gaskets (NACF)

Our Non-Asbestos Compressed Fibre (NACF) Gaskets are fabricated from high-grade aramid/synthetic fibers bound with elastomeric rubbers (NBR, SBR, or EPDM). Designed to replace asbestos gaskets in eco-compliant industrial applications, NACF gaskets provide high torque retention and reliable sealing across flat face and raised face pipe flanges.

Key Technical Features

  • 100% asbestos-free, environmental and safety compliant material
  • Excellent bolt torque retention and low stress-relaxation
  • Resistant to oils, steam, mild chemicals, and hydrocarbons
  • Precision die-cut or CNC cut to exact drawing profiles

Target Applications

  • Steam & Boiler Pipeline Flanges
  • Chemical Processing Fluid Lines
  • Water Supply & Treatment Piping
  • Heat Exchangers & Pressure Vessels
  • Valve Body & Pump Casing Gaskets

Available Rubber Compounds

  • Compressed Synthetic/Aramid Fiber with NBR Binder
  • Graphite-Coated Non-Asbestos Sheet Material
  • Elastomer-Bonded Fiber Matrix

Customization Parameters

  • Standard ASME / ANSI / DIN / BS Flange Gasket Sizes
  • Custom Full-Face or Ring Type Outer Geometries
  • Specific Sheet Thicknesses (0.5mm to 5mm)

Technical Specifications & Tolerances

Specification KeyStandard / Value Range
Max Operating TemperatureUp to +350°C (Grade Dependent)
Max Operating PressureUp to 100 bar (Grade Dependent)
Compressibility7% to 15%
Recovery> 50%
Standard ComplianceNon-Asbestos Eco-Friendly Standard
DimensionsAvailable based on requirement

Note: Exact dimensional tools and custom compound formulations are fabricated around specific customer drawings.

Direct Manufacturer Access • Custom Drawings & Samples

Need Custom Dimensions or Drawings for Non-Asbestos Compressed Fibre Gaskets (NACF)?

Get direct engineering support and instant custom pricing for Non-Asbestos Compressed Fibre Gaskets (NACF) formulated around your exact operating conditions.
