Precision Hydraulic Seals
Precision Hydraulic Seals

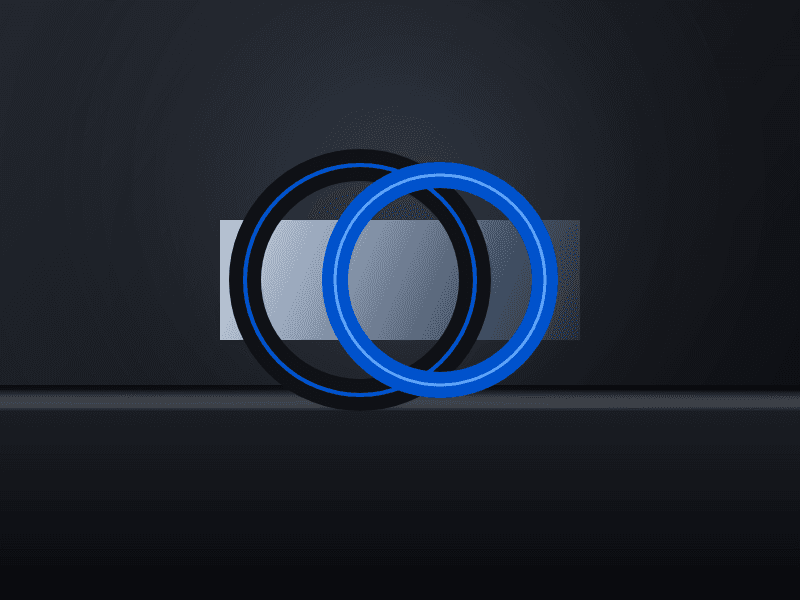

Servo Valve / Hydraulic Actuator O-Rings
Designed for tight-tolerance hydraulic control circuits, our Servo Valve and Hydraulic Actuator O-Rings deliver micro-inch dimensional accuracy and rapid pressure response. Manufactured from high-modulus NBR, Viton, or HNBR rubber compounds, these seals resist explosive decompression, extrusion under high hydraulic pressure, and fluid degradation.
Key Technical Features
- Tight dimensional tolerances eliminating hydraulic fluid bypass
- High shear and tear resistance under rapid valve cycling
- Extrusion resistant under high differential impulse pressure
- Inspected for micro-surface defects and parting line flashes
Target Applications
- Electro-Hydraulic Servo Valves
- High-Pressure Proportional Hydraulic Valves
- Hydraulic Cylinder Actuator Pistons & Glands
- Precision Fluid Power Manifolds
- Industrial Press & Motion Control Systems
Available Rubber Compounds
- High-Modulus Nitrile (NBR 80 / 90 Shore)
- Fluoroelastomer (Viton / FKM 75 / 90 Shore)
- Hydrogenated Nitrile (HNBR)
- Fluorosilicone (FVMQ)
Customization Parameters
- Micro-sized Inner Diameters & Tight Cross-Section Tolerances
- Anti-Extrusion Back-up Ring Compatibility
- Custom Shore A Hardness (70 to 95 Shore)
- Specific Fluid Immersion Formulations (Biodegradable Oils, Phosphate Esters)
Technical Specifications & Tolerances
| Specification Key | Standard / Value Range |
|---|---|
| Working Pressure | Up to 350+ bar (With anti-extrusion back-up) |
| Tolerances | Strict ISO 3601 / AS568 precision tolerances |
| Hardness Range | 70 to 90+ Shore A |
| Temperature Stability | -30°C to +200°C (Material Dependent) |
| Dimensions | Available based on requirement |
Note: Exact dimensional tools and custom compound formulations are fabricated around specific customer drawings.
Direct Manufacturer Access • Custom Drawings & Samples
Need Custom Dimensions or Drawings for Servo Valve / Hydraulic Actuator O-Rings?
Get direct engineering support and instant custom pricing for Servo Valve / Hydraulic Actuator O-Rings formulated around your exact operating conditions.
